Micro-Combi-Sensor DFT 485






698,00 EUR (Net)*


plus shipping costs

Piece(s)

Manual (1.49 MB)
Brochure (1.03 MB)

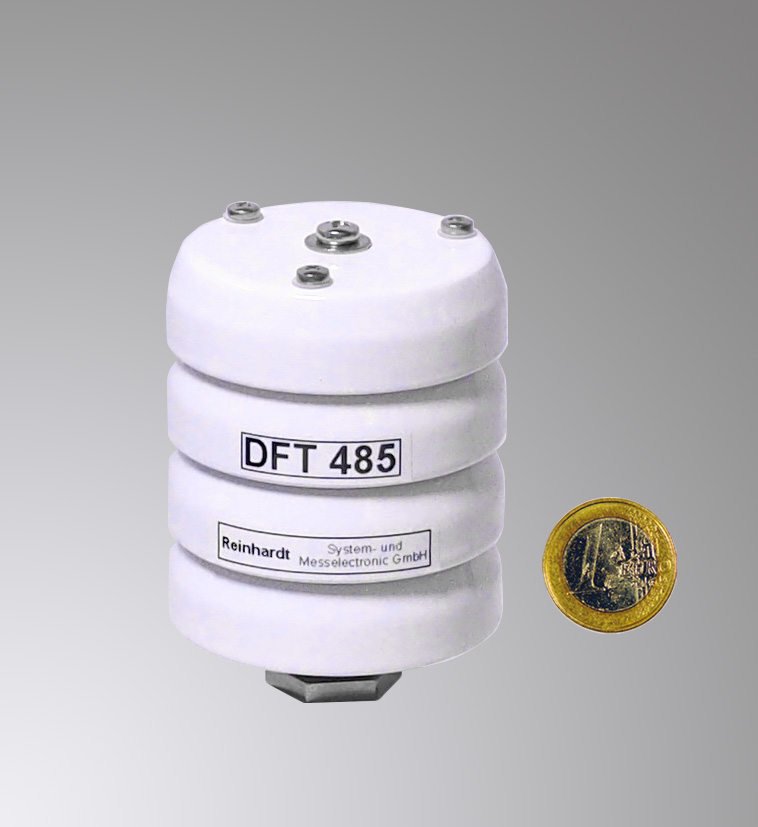

DFT 485 Combined micro-sensor with 3 sensors



The high quality steel housing holds all the sensors and the complete evaluation electronics. The sensor measures temperature (-40 to +60 °C, resolution 0.01 °C, tolerance 0.5 °C, relative humidity 10–100 %, resolution 0.01 %, tolerance 2.5 % and barometric air pressure 300 to 1,100 hPa absolute pressure, resolution 0.03 hPa, accuracy 1 hPa, dewpoint calculated via software. Data interface can be coded RS232, RS422 or RS485. Baud rate can be configured from 1,200 to 38,400. The combined sensor can be expanded with WLAN for long-distance data transmission. With a REINHARDT-TCP/IP-module data transmission is available via an existing network.

Its comfortable menu-driven software can be used with MS WINDOWS® (from versions 2000, NT, XP, VISTA to 11). Versions for WINDOWS® 3x or MS DOS® are still available. Power supply 6–30 VDC; the sensor is fixed with a thread M18x1.5 (nut incl.) and outlet for cable connection. Connection is easy with one 4wire or 6wire connection in a plug and play procedure.
Without power supply and without cabling
Dimensions: Diameter (head) 60 mm, height 90 mm, weight 170 g



* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
