Boundary Scan RBS 100






The RBS 100 Boundary Scan-module includes hardware, programming and test software. The RBS 100-module requires the REINHARDT-ATSGERB-software for graphical display of fault location.

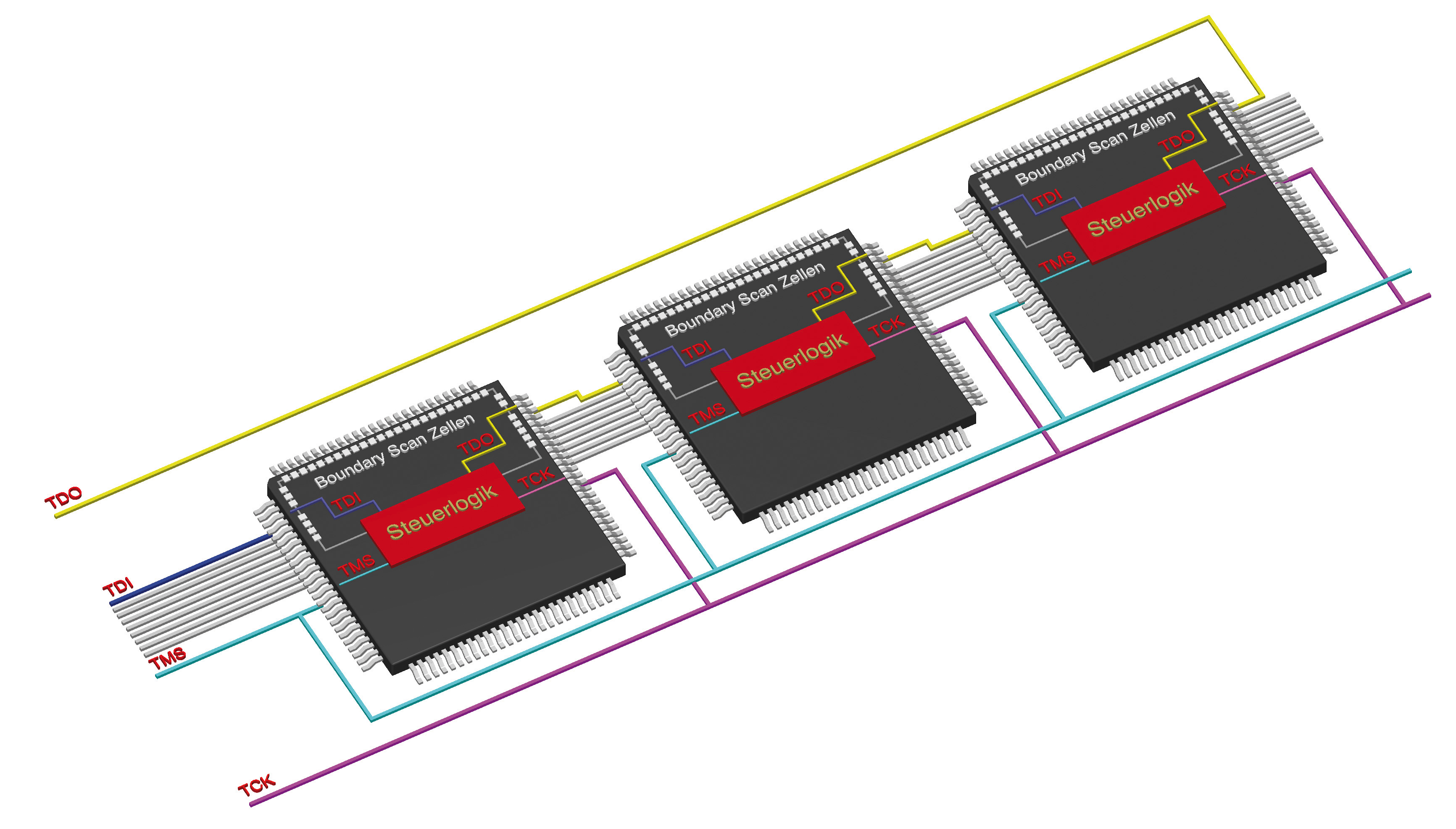

Digital Boundary Scan can check connections between the resp. circuits. A short-circuit can also be found. Boundary Scan only requires two additional bus connections, the TCK (Test Clock) and the TMS (Test Mode Select) which are connected in parallel to any IC used in Boundary Scan. A digital signal pattern is applied to the IC-pin under test (Test Data Output TDO). The connected IC (ICs) is scanned via Boundary Scan, if the resp. signal pattern is applied (Test Data Input TDI).

In case certain points of the DUT cannot be addressed directly via Boundary Scan, you can do that via the very cost-effective bi-directional logic channels of REINHARDT-test systems (e. g. LOG 96 Logic Board).

The RBS 100 (REINHARDT Boundary Scan) module is completely integrated in the user-friendly software of REINHARDT-test systems. As in other REINHARDT-solutions, only the Gerber files and the BSDL-data (Boundary Scan Description Language) of the ICs are required for creating a Boundary Scan-test program. These data are used for graphical display of fault locations and the connections of the single ICs.


* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
