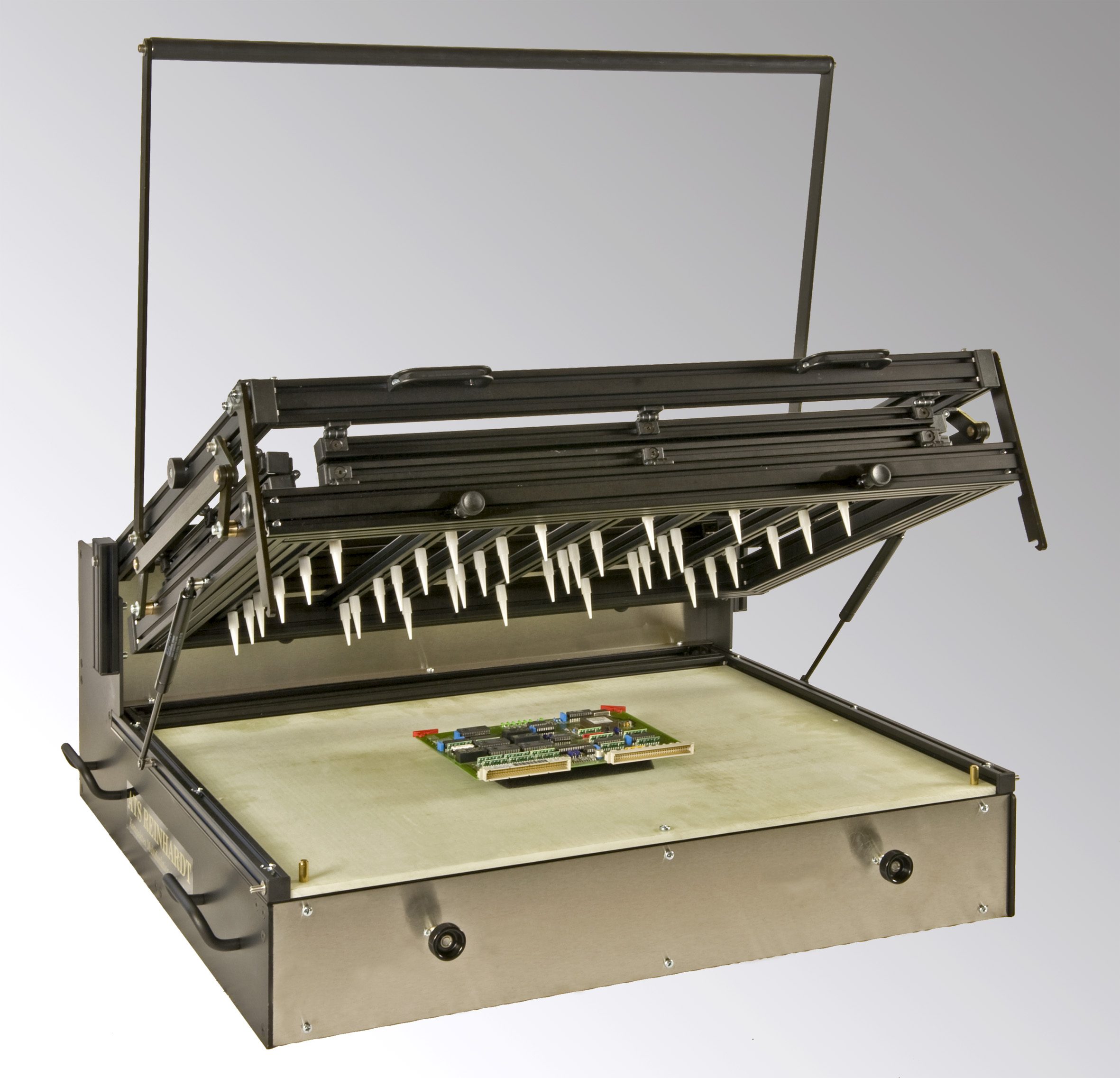

Manual Test Fixture Type 52L






4.200,00 EUR (Net)*


plus shipping costs

Piece(s)

Brochure (4.78 MB)
Salient Features (4.89 MB)

up to 1,000 standard contact pins, working area: 670 x 450 mm



Shift: 26 mm, dimensions: 80 x 79 x 31 cm, weight: 34 kg
  • Manual fixture with twin interface
  • Use with a REINHARDT-test system with expansion rack
  • Pull on ball-bearings
  • Force transmission by lever
  • Little effort
  • High pressure force

As the lower universal exchange plate can be changed easily, you only need another plate for a new test fixture. This is why our fixture system is so cost-effective. The upper retention exchange box (incl. 36 retention pins mounted to six receiver arms) can easily be exchanged for another box for the universal fixture or for a box for solder defects or polarity test. The complete retention unit can be opened so that there is optimum access to the exchange box from below.

For test system family ATS-KMFT 670




* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
