Starterkit for Building Fixtures Manually



1.500,00 EUR (Net)*


plus shipping costs

Piece(s)

Brochure (9.77 MB)

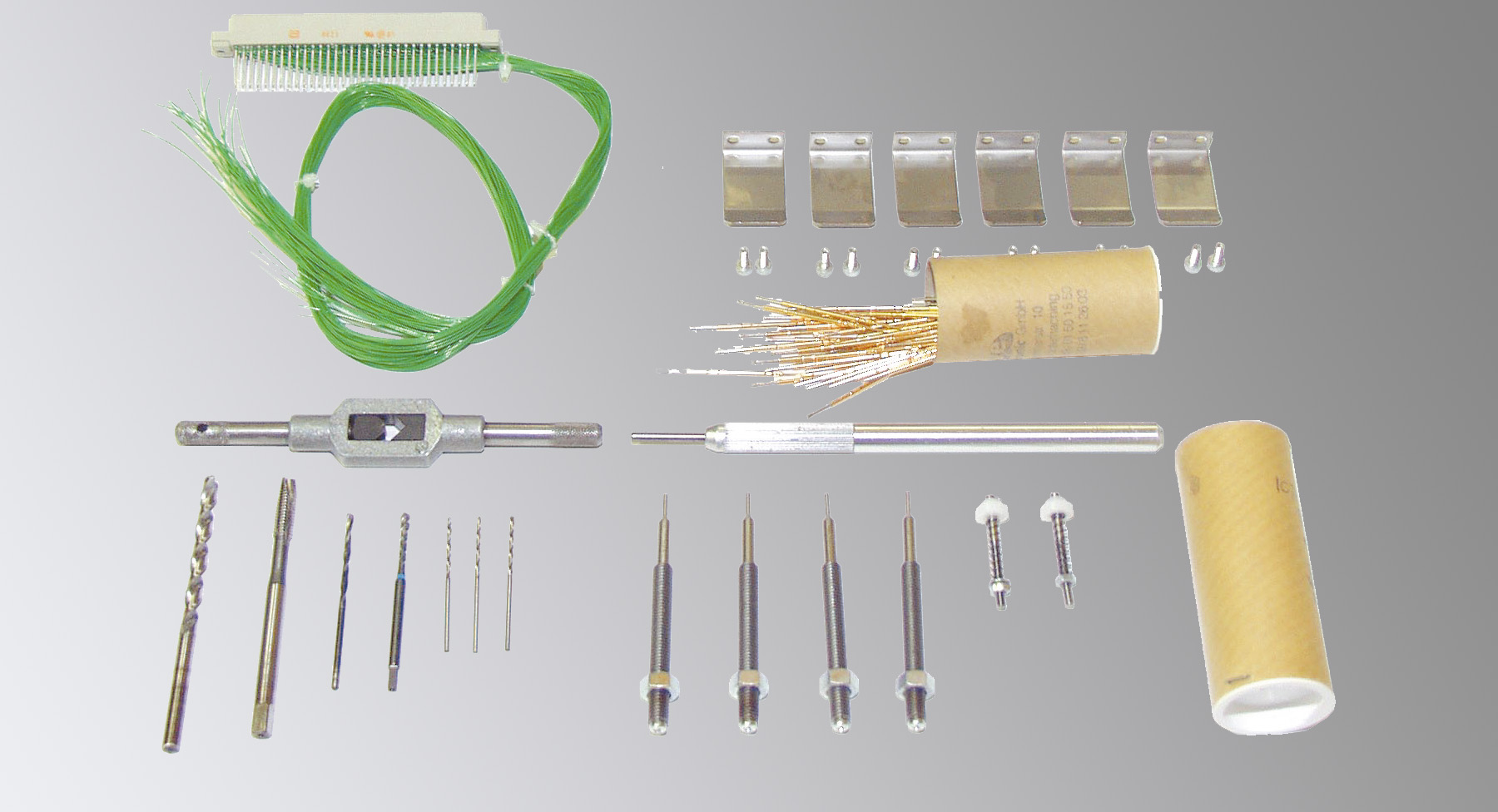

Tools and Material for Building Fixture Bed-of-Nails

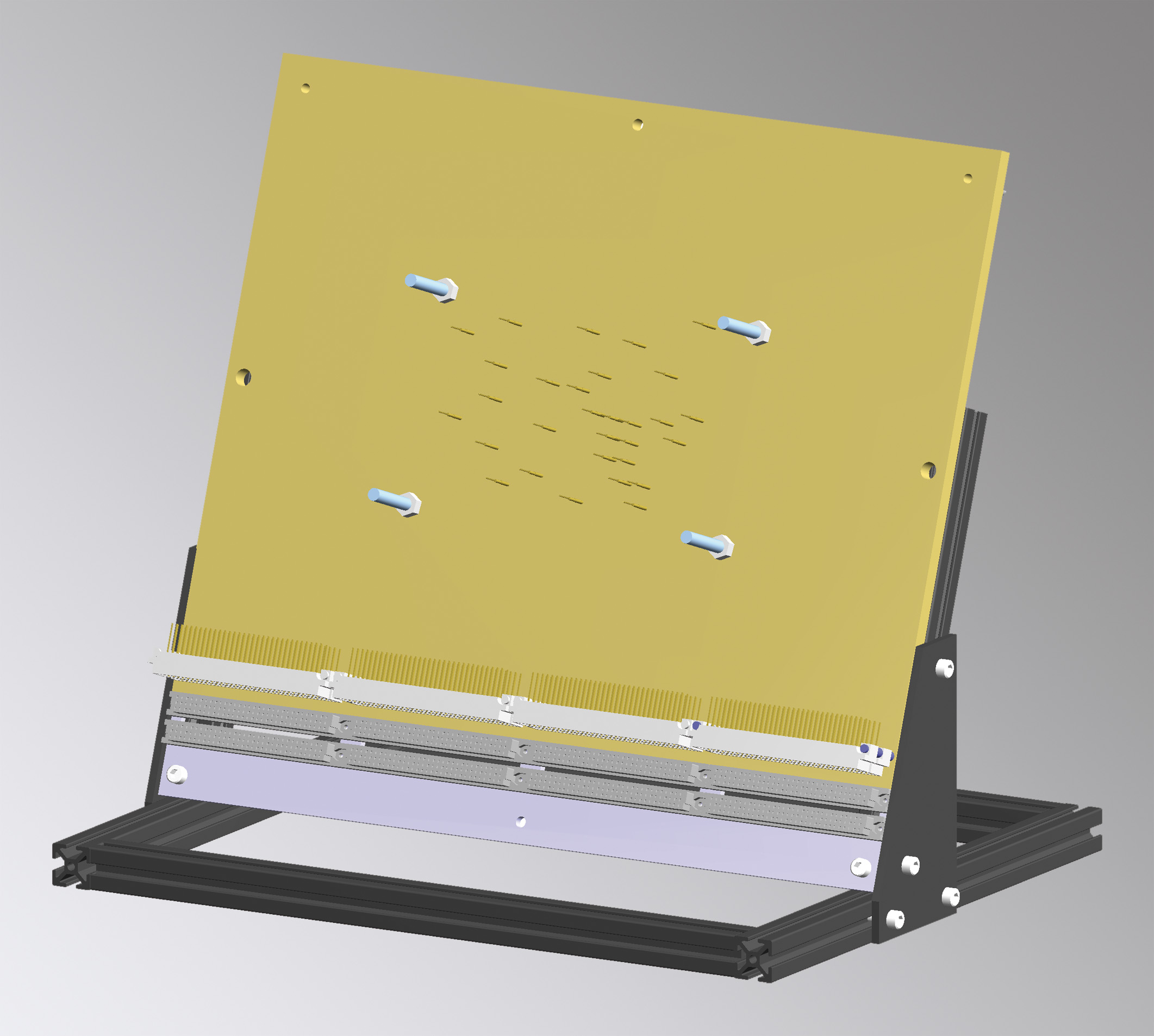

1 ergonomic frame for holding the fixture plate 380 x 297 x 8 mm
1 base body for insertion head
1 insertion head 100 mil
1 insertion head 75 mil
6 guiding angles with 6 sets of screws
4 guiding edges
2 guiding brinks
4 connectors 96 wrap
4 reference pins 3
1 reference pin 4
1 manual tool for pressing in reference pin 3
3 boxes with 50 crowns 100 mil each (total 150) in receptacles
5 boxes with 50 tips 100 mil each (total 250) in receptacles
1 box with 50 tips 75 mil in receptacles
20 contact pins tips 50 mil
20 receptacles 50 mil
2 drills 1.70 mm for standard 1/10” (100 mil)-pin receptacles
2 drills 1.33 mm for 75 mil receptacles
2 drills 0.98 mm for 50 mil-receptacles
1 adjustable twisting pliers for screwing in taps
1 drill 5.0 mm for reference pin 3
1 drill 3.0 mm for guiding edge
1 drill 2.5 mm for tapping threads 3
1 manual deburrer
1 machine screw tap M3 for guiding angles
1 guide for tap




* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
