Wind Direction Sensor WRS 485






398,00 EUR (Net)*


plus shipping costs

Piece(s)

Manual (1.47 MB)
Brochure (1.03 MB)

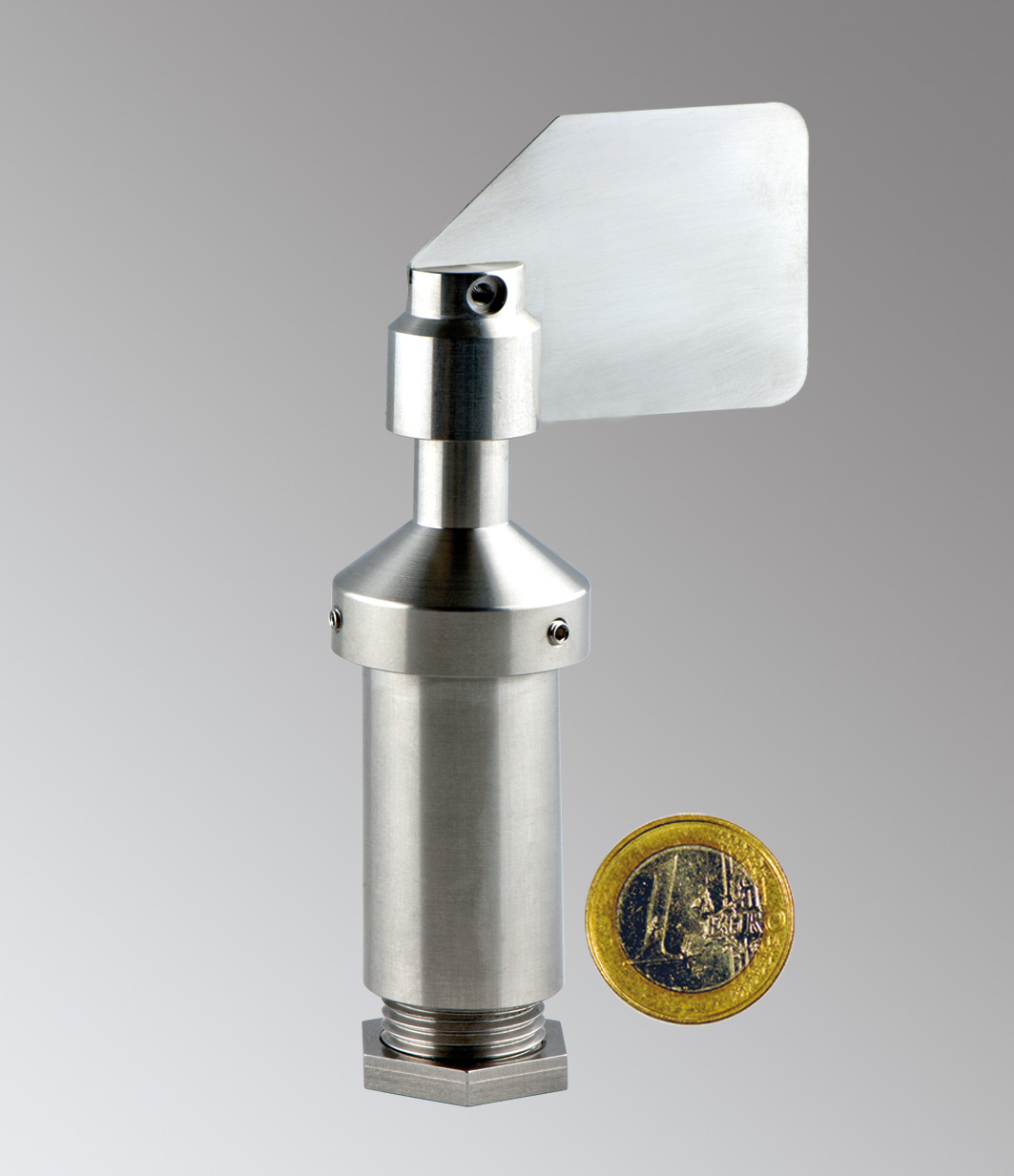

Micro-sensor for measuring wind direction



The high quality steel housing holds the sensor and the complete evaluation electronics. The sensor measures wind direction (0 to 360 °, resolution 0.4 °, accuracy ± 5 °). Data interface can be coded RS232, RS422 or RS485. Baud rate can be configured from 1,200 to 38,400. The sensor can be expanded with WLAN or GSM-module for long-distance data transmission. With a REINHARDT-TCP/IP-module data transmission is available via an existing network.

Its optional comfortable menu-driven software can be used with MS WINDOWS® (from versions 2000, NT, XP, VISTA to 10). Versions for WINDOWS® 3x or MS DOS® are still available. Power supply 6–30 VDC; the sensor is fixed with a thread M18x1.5 (nut incl.) and outlet for cable connection. Connection is easy with one 4wire or 6wire connection in a plug and play procedure.
Without power supply and without cabling
Dimensions: Height 120 mm, weight 130 g



* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
