Micro-Combi-Sensor WGWR 485






750,00 EUR (Net)*


plus shipping costs

Piece(s)

Manual (1.47 MB)
Brochure (1.03 MB)

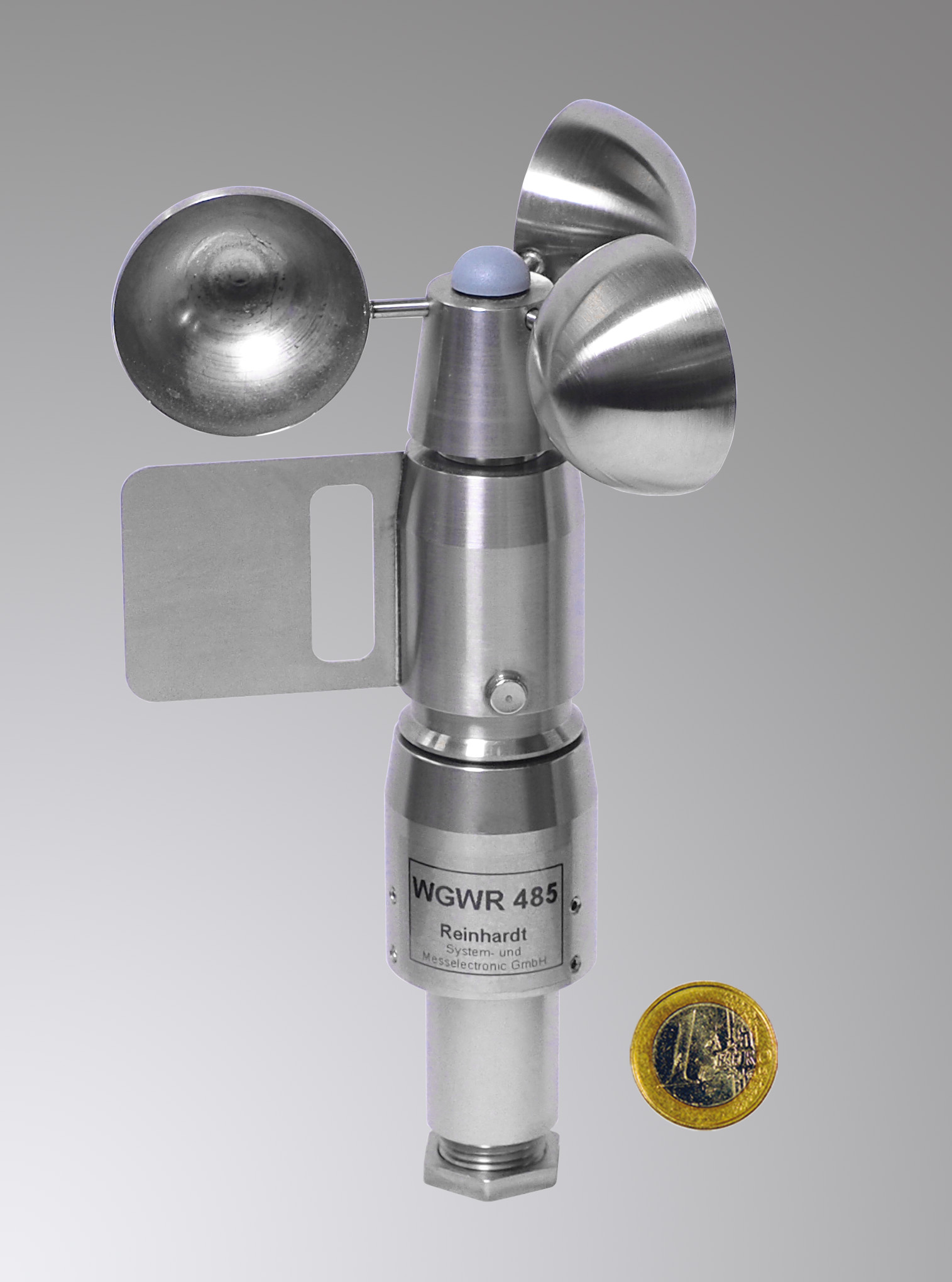

WGWR 485 Micro Combined Sensor for measuring wind speed and wind direction



The high quality steel housing holds the sensor and the complete evaluation electronics. The sensor measures wind speed from 0–150 km/h, resolution 0.05 km/h, average wind, wind peak, response from 0.5 m/s and wind direction (0 to 360 °, resolution 0.4 °, accuracy ± 5 °). Data interface can be coded RS232, RS422 or RS485. Baud rate can be configured from 1,200 to 38,400. The sensor can be expanded with WLAN or GSM-module for long-distance data transmission. With a REINHARDT-TCP/IP-module data transmission is available via an existing network.

Its comfortable menu-driven software can be used with MS WINDOWS® (from versions 2000, NT, XP, VISTA to 10). Versions for WINDOWS® 3x or MS DOS® are still available. Power supply 6–30 VDC; the sensor is fixed with a thread M18x1.5 (nut incl.) and outlet for cable connection. Connection is easy with one 4wire or 6wire connection in a plug and play procedure.
Without power supply and without cabling
Dimensions: Diameter 120 mm, height 175 mm, weight 340 g


* All prices are valid in Germany and the European Community and are without taxes, transport and packing. IE & OE – Specifications subject to change without prior notice.
